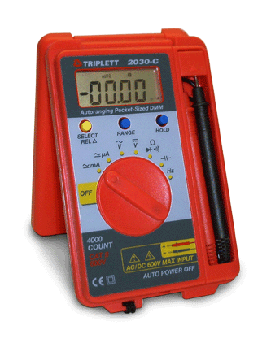

Model 2030-C

Triplett Corporation offers a full line of affordable, high quality Digital Multimeters. Each model in the Triplett DMM line has its own unique Features & Functions.

Pocket-Sized DMM
Large 9mm LCD Display
Full Auto Ranging
Auto Polarity
Diode Check
Continuity Beeper
Bargraph
Auto Power Off
Low Battery Indicator
Data Hold
21" Test Leads
Protective Hard Case Cover
UL Listed
One Year Warranty

$ 29.90 ea.

A New Triplett
For A New
Millennium !

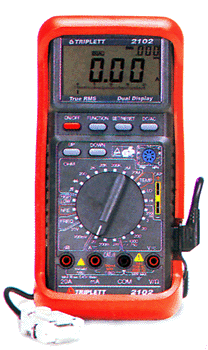

Model 2102

True RMS
Dual Display
3 1/2 Digit, 1999 Count
42 Segment Analog Bar Graph
41 Ranges And Functions
AC Voltage (200mV to 750 V)
DC Voltage (200mV to 1000V)
Resistance (200 Ohm to 20 Meg Ohm
Frequency (2 KHz to 2 MHz)
Capacitance (2nF to 200uF)
Temperature (-40 F to 1999 F)
RS-232C Port
Diode Check
Transistor Check
Logic Test
dB Test
Auto Polarity
Data / Auto Hold
Min / Max Hold
Memory / Recall - Stores 10 Values
Auto Power Off

$ 154.90 ea.

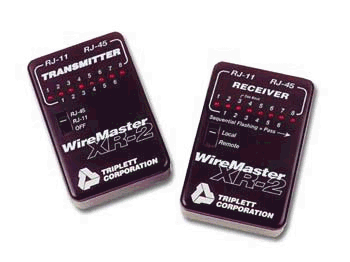

The WireMaster XR-2 is the perfect test set for verifying the continuity of 2,3, or 4 pair UTP (Unshielded Twisted Pair) cables terminated in RJ-11 or RJ-45 modular connectors (such as LAN cables or telephone cables). In the Remote mode (when only the Receiver is visible to the user), installed "straight through" and "reverse wired" cables can be identified and their continuity verified. In the Local mode (when both the Transmitter and Receiver are visible to the user), jumper, or "patch" cables can be tested, and their point to point wiring verified, regardless of whether they are "straight through", "reverse wired", "crossover wired", or of any wiring configuration. In both test modes, reversed, shorted, transposed, crossed, or open pairs are detected. In the Remote mode, an LED warns the user that the tested cable is mis-wired. The WireMaster XR-2 also generates Tracer Tones that may be used to locate un-energized cables, when used with an inductive tracer such as the Triplett Hound or Hound 2 Probe. The switch on the Transmitter selects testing of cables equipped with either RJ-11 or RJ-45 connectors. The switch on the Receiver selects testing of patch cables (Local test) or installed cables (Remote test). In use, the cable to be tested is connected between the Transmitter and the Receiver. The 8 LEDs on the Transmitter light in a predetermined sequence (right to left or left to right), while the LEDs on the Receiver light in a sequence determined by the wiring of the cable being tested. By examining the sequence in which the Receiver LEDs light, the user can determine the wiring of the cable. The Transmitter can be configured by the user (via internal jumpers) to sequence in Forward or Reverse direction, to sequence at a Fast or Slow Pace, to use a High or Low pitched tracer tone, or to test 4 or 6 conductor RJ-11 cables.

$ 99.90 ea.

Verifies point-to-point wiring of twisted pair LAN cables, telephone cables, and other types of cables that use
         RJ-45 and RJ-11 connectors
  New "Local Mode" allows for testing of patch cables
  Checks "straight-through", "reverse wired", and "crossover" LAN patch cables
  Checks continuity in cable conductors
  Generates 2 distinct warble tones usable for cable tracing
  8 LED's identify the source and destination of each conductor
  Direct connection of 6 pin RJ-11 or 8-pin RJ-45 cables
  Allows remote testing of long cable runs up to 1000 feet
  User selectable features:
          RJ-11 4 conductor or 6 conductor test
          Forward or Reverse sequencing on Transmitter
          High or Low Pitch Tracer Tone
          Fast or Slow LED sequencing
          Local or Remote Test Mode on Receiver
  TELCO Protected
  Long Battery Life
  Carrying Case Included
  One Year Warranty

Quality DMMs At An Affordable Price !

Triplett Is Proud To Offer A 3 Year Warranty On All 9000 Series DMM's, 1 Year On Calibration.

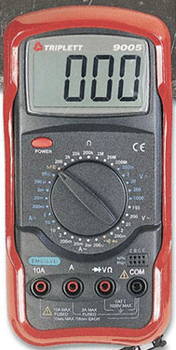

Model 9005

3 1/2 Digit, 1999 Max. Reading
HUGE, 1" High Digital Display
DC Voltage To 1000 Volts
AC Voltage To 750 Volts
AC Current To 10 Amps
DC Current To 10 Amps
Resistance To 200 Meg Ohm
Continuity Test
Diode Check
Transistor Check
Double Insulated Case

$ 39.90 ea.

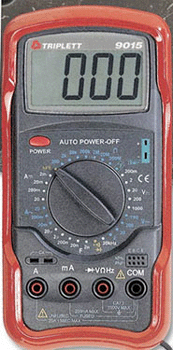

Model 9015

3 1/2 Digit, 1999 Max. Reading
HUGE, 1" High Digital Display
DC Voltage To 1000V
AC Voltage To 750V
AC Current To 20A
DC Current To 20A
Resistance To 200Meg Ohm
Frequency
Capacitance Test
Temperature Test
Continuity Test
Diode Test
Transistor Check
Auto Power Off

$ 64.90 ea.

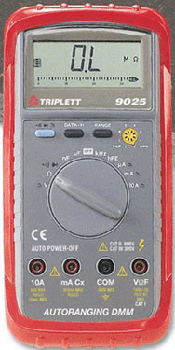

Model 9025

3 3/4 Digit, 3260 Max Reading
33 Segment Bargraph
Auto / Manual Range Selection
DC Voltage To 1000V
AC Voltage To 750V
AC Current To 10A
DC Current To 10A
Resistance To 32.6 Meg Ohm
Frequency
Capacitance Test
Continuity Test
Diode Check
Transistor Check
Data Hold
Auto Power Off

$ 69.90 ea.

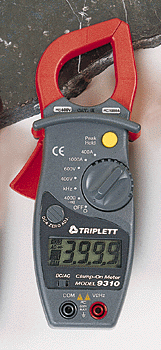

Model 9310
AC/DC Clamp-On Meter

3 3/4 Digit LCD, with max. rdg. of 3999
AC Voltage Ranges to 600V
AC Current Ranges to 1000A
DC Voltage Ranges to 600V
DC Current Ranges to 1000A
Resistance Ranges to 400 ohms
Avg. AC Responding Measurements
DCA Zero Adjustment Knob
Continuity Test
Frequency Test
Peak Hold
Manual Ranging
Carrying Case

$ 99.90 ea.

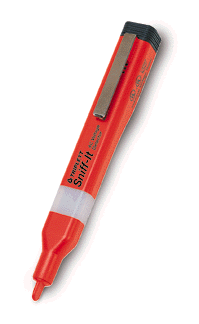

"Sniff-It"
Model 9600 - AC Voltage Detector

Easy and Economical way to check for AC Voltage
Safe, Non-Contact Voltage probe
Convenient Pocket-Size (with pocket clip)
Check 50 to 600 Volts AC
Visual (light flashes) and Audible (chirps)Alerts when AC voltage is present
Use to help locate breaks in wires
Quickly locates hot and neutral terminals in wall outlets
Non-Contact insulated tip allows for safe troubleshooting on high voltage circuits
UL Listed

$ 16.90 ea.

"Breaker Sniff-It"
Model 9650 - Circuit Breaker Locator

No Adjustments Necessary
Audible and Visual Indication
Micro-Processor Controlled
120/220 VAC Transmitter
Auto Power Off Battery Saver
Uses 9 Volt Battery (not included)
UL Listed

$ 48.90 ea.
